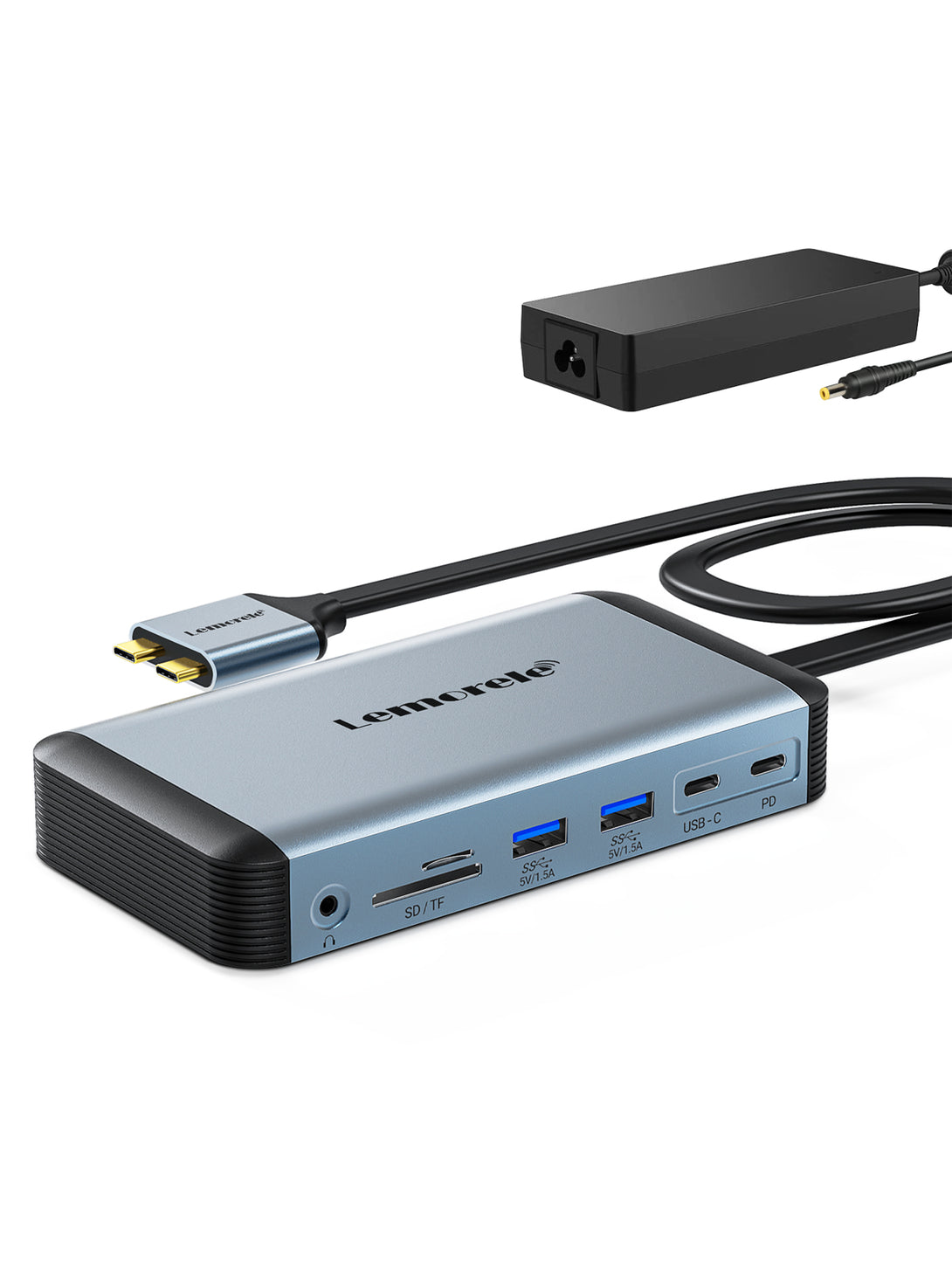

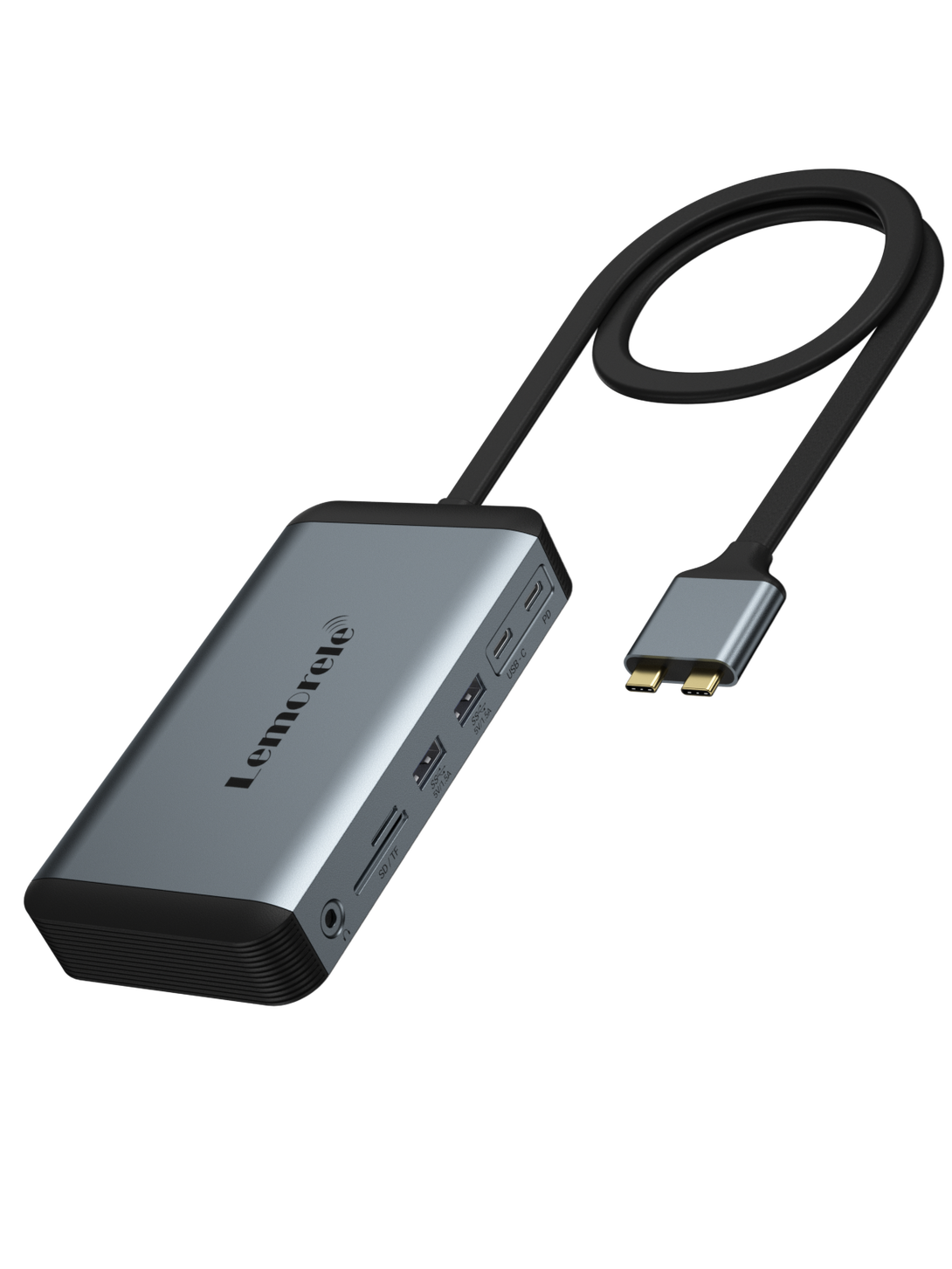

Lemorele 12 in 2 USB C Docking Station for MacBook [#TC73]

Product Description

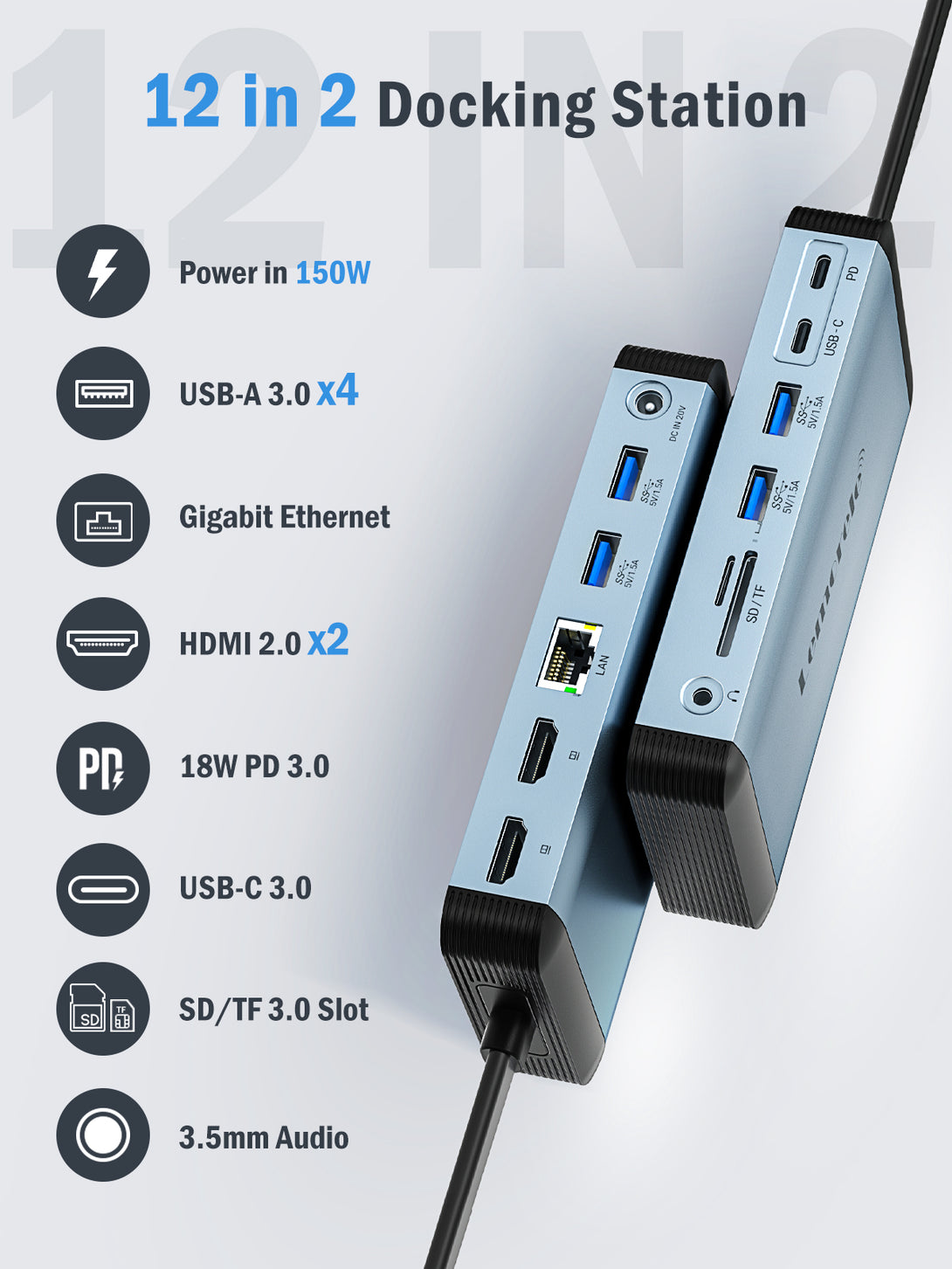

This 12-in-2 USB-C docking station dual monitor is equipped with 12 ports, including：

2x HDMI 2.0：supports two 4K extended displays with up to 3840x2160 resolution at 60Hz

1x 18W PD USB-C 3.0：not only support 18W PD charging for your phone or other mobile device, also support 5Gbps data transfer

1x USB-C 3.0：support data transfer rates at up to 5Gbps, 10x faster than USB 2.0

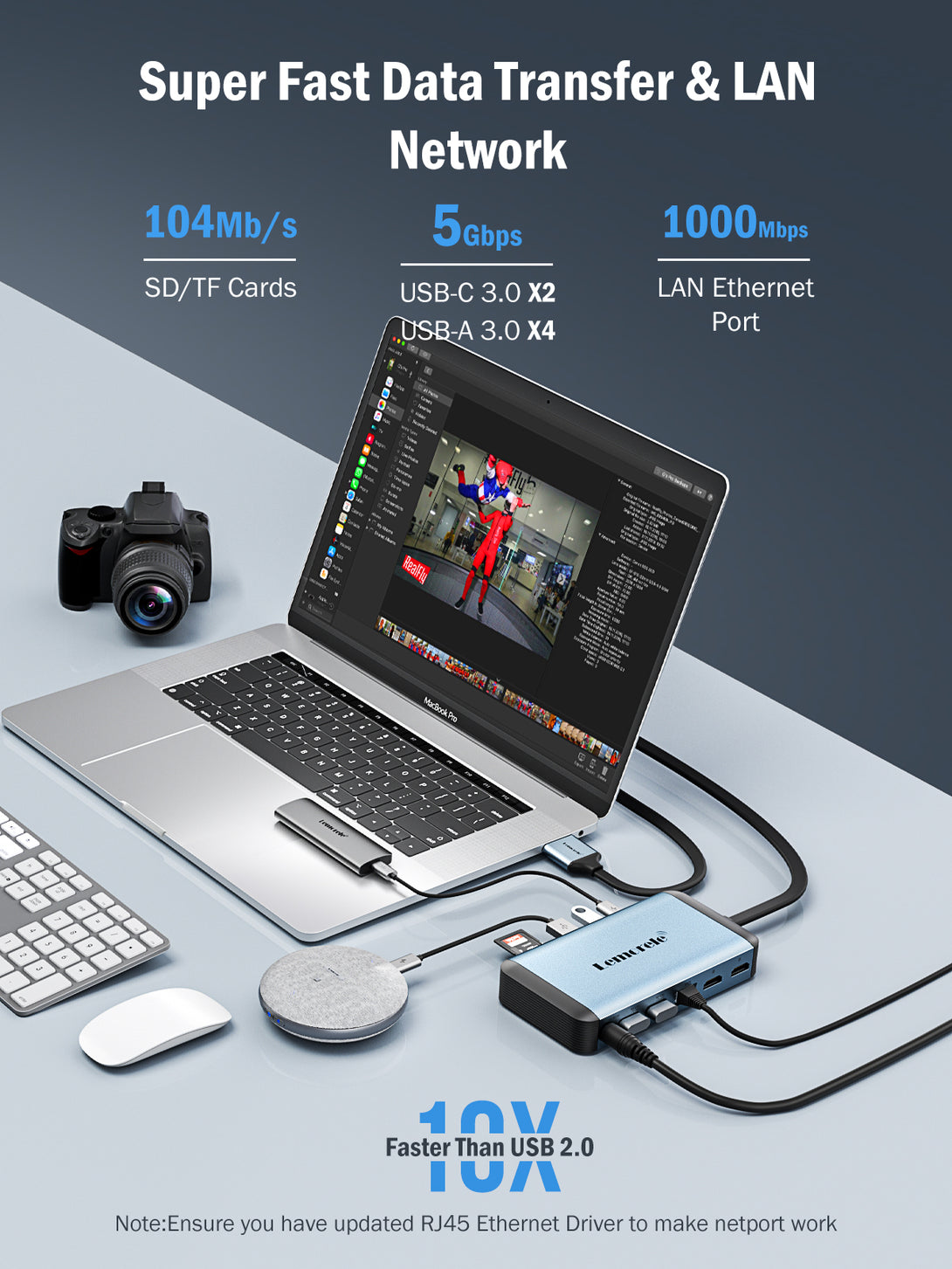

4x USB-A 3.0：support data transfer rates at up to 5Gbps, 10x faster than USB 2.0

1x SD：can read data simultaneously and transfer files with a maximum speed of 104 MB/s

1x microSD (TF)：can read data simultaneously and transfer files with a maximum speed of 104 MB/s

1x 3.5mm audio：provides you with a comfortable and independent personal space

1x Gigabit Ethernet：ensures a stable and faster wired internet connection for working, conference, video, daily life and more

Dual [email protected] Extend Monitors:

The macbook pro docking station uses two HDMI ports to connect two external 3840x2160 [email protected] displays simultaneously in extended mode.

Support Model: 15'' MacBook Pro (/2019/ 2018/ 2017), 16'' MacBook Pro (2021/ 2019) or Macbook 2020 Intel series

Dual [email protected] Extend Monitors:

The first 4k display will have a refresh rate is 60Hz, while the second will refresh at 30Hz.

Support Model: 14" MacBook Pro (2021), 15" MacBook Pro ( 2016), 13" MacBook Pro ( 2019/ 2018/ 2017/ 2016), 13" MacBook Air (2019/ 2018)

Q: Does 2020 M1/2022 M2 supports dual external displays? Why?

A: No, because of some functional limitations of 2020 M1/2022 M2 chips, it can't achieve dual displays.

Q: What can I do if the extended monitor flickers?

A: 1. Try a shorter video cable

2. Try a different monitor that is known to be running well.

3. Update your operating system to the latest version.

4. Try to reset the NVRAM.

5. Don't use HDMI converter.

Compatible Devices and Incompatible Devices:

Dual [email protected]：

16-inch MacBook Pro (2019 & 2021)

15-inch MacBook Pro (2017 and later)

MacBook Intel Series 2020

Only Single [email protected]:

13-inch MacBook Pro/Air (M1 2020 /M2 2022)

Note: Only support one extrenal monitor of MacBook with M1/M2 chip

[email protected] + [email protected]:

14" MacBook Pro (2021)/ 14" MacBook Air (2018 and later)/15" MacBook Pro ( 2016)

13" MacBook Pro ( 2019/ 2018/ 2017/ 2016)/13" MacBook Air (2019/ 2018)

Mac Mini (2018 and later)

Compatible Operating Systems: Mac OS Sierra 10.12 and later

Incompatible Devices:

MacBook Pro/Air (2015 and before)/Mac mini (2017 and before)/ iMac/Mac Pro

Note: It doesn't support the MacBook and Mac Series above

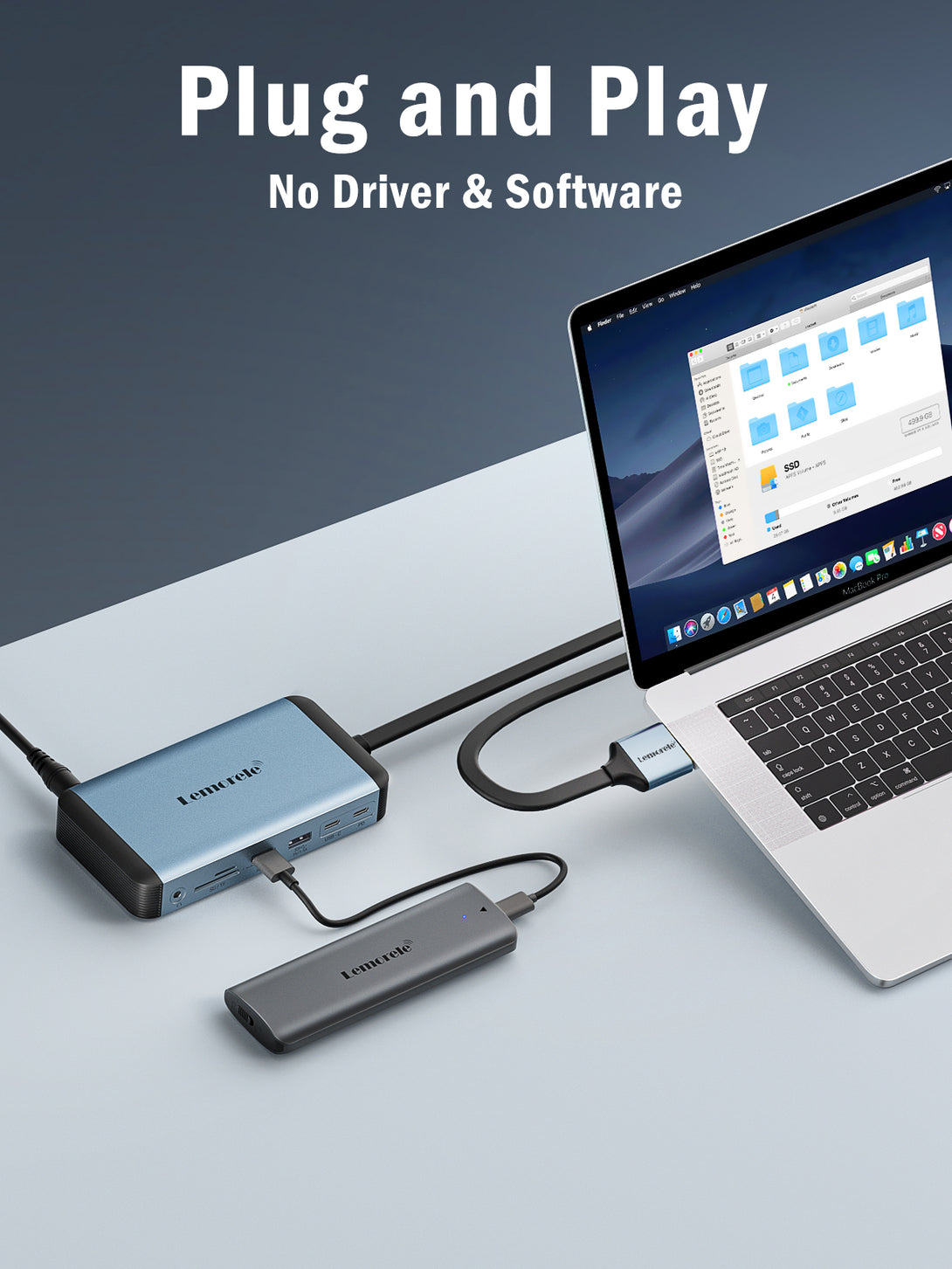

• Lemorele USB-C hub NO needs any extra drivers whatever from any ports. Update device/laptop's drivers and try charging hub continuously for better connection.

• Hub not recognized on Windows 11 >

-these days, there is new discovery for Windows 11 where drivers are too old to run, advise updating drivers from laptop brand official website or below software recommended by users(charges)
www.iobit.com/en/driver-booster

• Error [Code 43] >

-here is an article that may help.

• Ethernet not working >

-Make sure the ethernet driver on your laptop is updated, if not, go to Realtek official to download.
Realtek USB FE / GBE / 2.5G / Gaming Ethernet Family Controller Software - REALTEK

• HDMI not working >

-Confirm with laptop brand that the USB-C port on laptop supports [DP alt mode], if not, HDMI can not output from the laptop.
-Try another HDMI cable.
-Connect power adapter into hub to fulfill enough power for hub to activate.

• USB not recognize >

-Make sure USB format is compatible with laptop system's requirements.
-Connect power adapter into hub to fulfill enough power for hub to activate.
-Try other different USB devices you have.

• USB keeps disconnecting >

-Check this article you might have an answer.

• Nintendo Switch no transfer video to external screen >

-A lot of customers have the issue that not transferring to an external monitor > this feature must be charging to be activated, thus plug Nintendo AC power adapter into hub is a MUST.

• Chromecast with Google TV >

-The Chromecast dongle must be charging with 5V/2A at least by wall socket not USB on TV (insufficient watt), go charging it through hub.
-USB disk or storage medium not recognized > make sure to format it as FAT32.

• [Slow Charger] Windows notification from Dell notebooks>

-Learn from Dell community, the issue caused by the BIOS version. it's not easy for general users, go for Dell support or find a friend who is good at PC configuration to help. here is the source

• Email [email protected] for further help after trying the above steps, also provide the below info for fast debug >


1. order #
2. model # of hub
3. the specific model of laptop/device
4. running OS
5. specific issue(a video is great)
